Delta Loop 3el. 11M
1450,00 zł ex. VAT & Shipping
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
A 3-element Delta Loop antenna designed and tuned for the 11m 27 or optional 10m 28 MHz band.
It is a robust directional antenna ideal for local and distant DX communications. The beam has been narrowed and performance improved over the 2-element version.
The antenna does not require a tall mast.
The design uses high quality materials for durability and electrical performance.
The antenna can also operate on the 10m and 11m bands.
Gain – 13,4 dBi
Front/Back Ratio – 26 dB
Power rating – 2kW

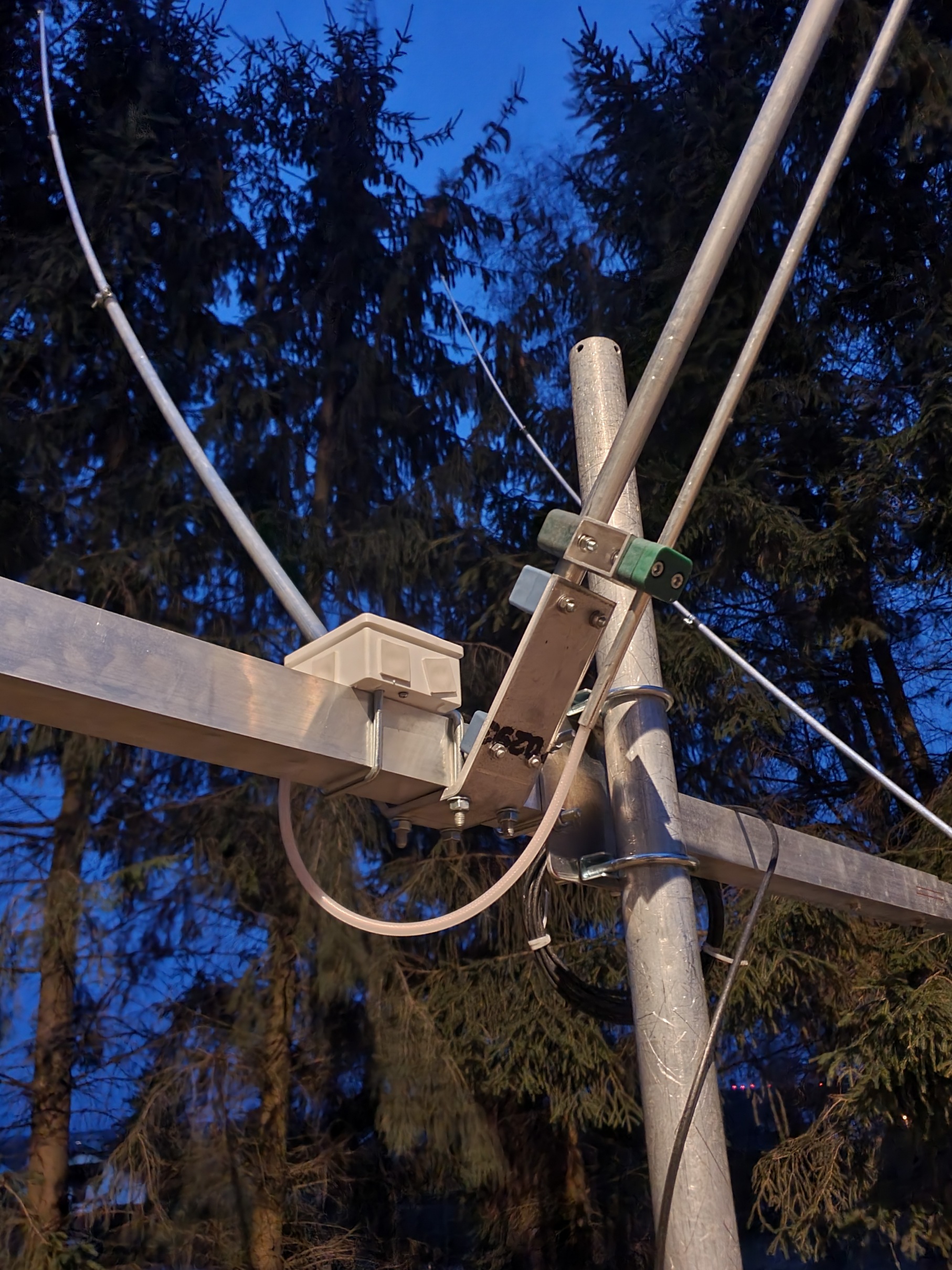

Matching method – gamma match
Impedance – 50 Ohm
Weight – 12,5 kg
Boom length – 3.5m
Additional information
Weight | 14 kg |
---|---|
Dimensions | 150 × 17 × 17 cm |
arno –
Une très bonne antenne construction robuste tout à la masse. J’habite dans une zone urbaine et l’antenne est très silencieuse et peu sensible au qrm. Félicitations les résultats sont très satisfaisants.
