Delta Loop 2el. 11M

Description

A 2-element Delta Loop antenna designed and tuned for the 11m 27 or optional 10m 28 MHz band.

It is a lightweight antenna ideal for local and distant DX communications.

The antenna does not require a tall mast and can outperform a 3-element Yagi in terms of performance. The design uses high quality materials for durability and electrical performance.

The antenna can also operate on the 10m and 11m bands.

A 3-element or 4-element variant can also be ordered.

Gain – 12,1 dBi
Front/Back Ratio – 28 dB
Power rating – 2kW

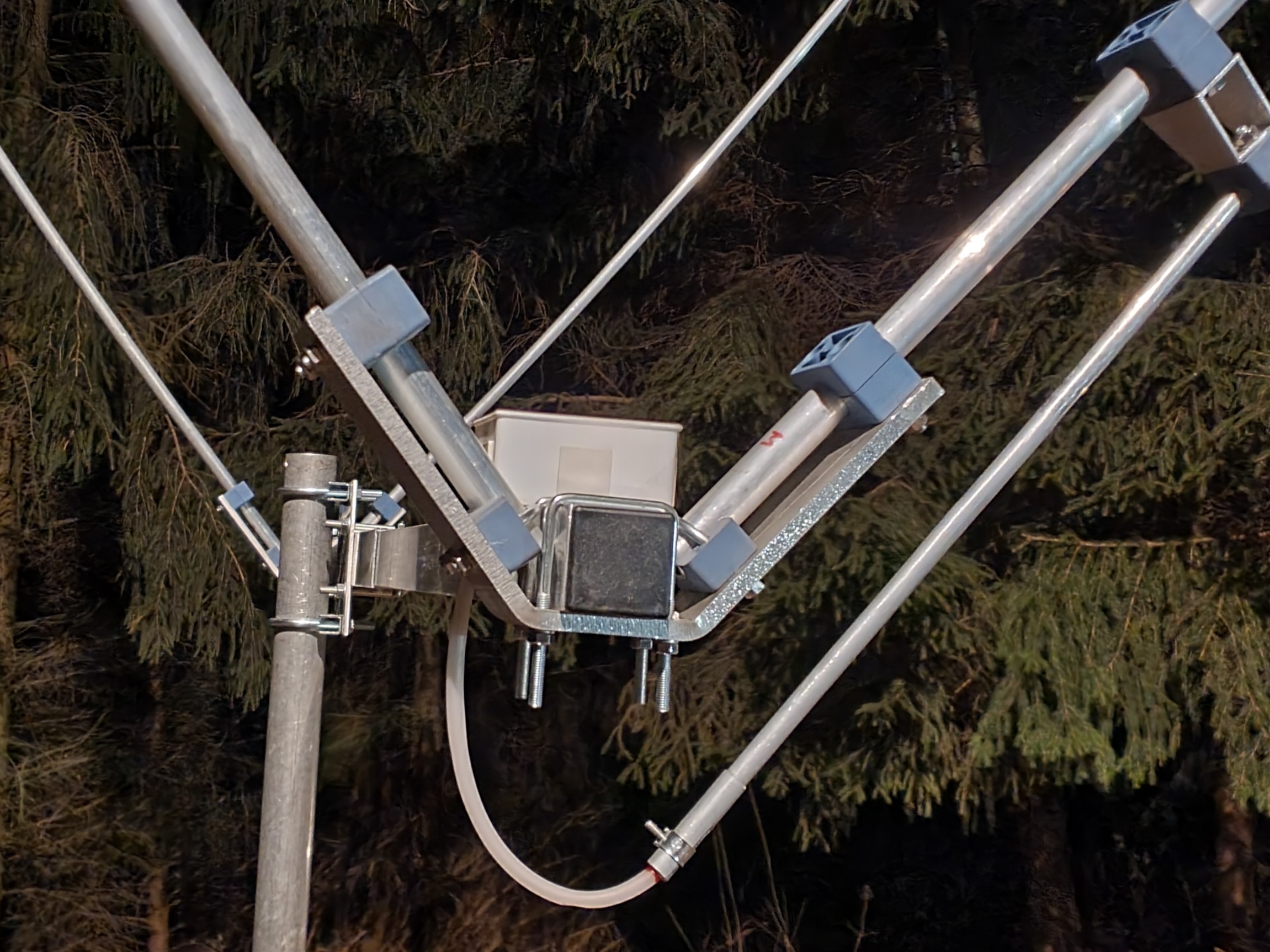

Matching method – gamma match
Impedance – 50 Ohm
Weight – 8,5 kg
Boom length – 2m
